My Automotive FAQ - System 10 Wiring Diagrams

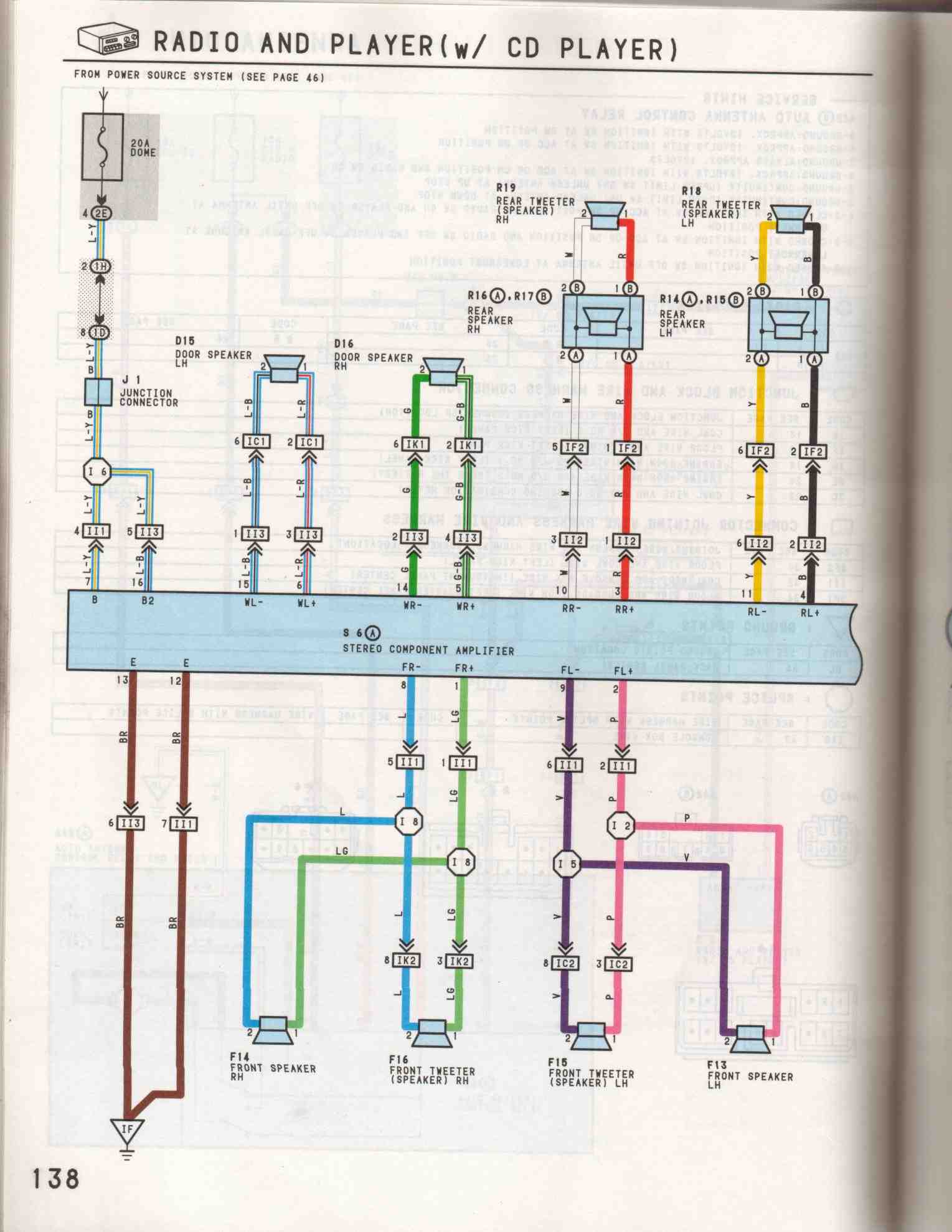

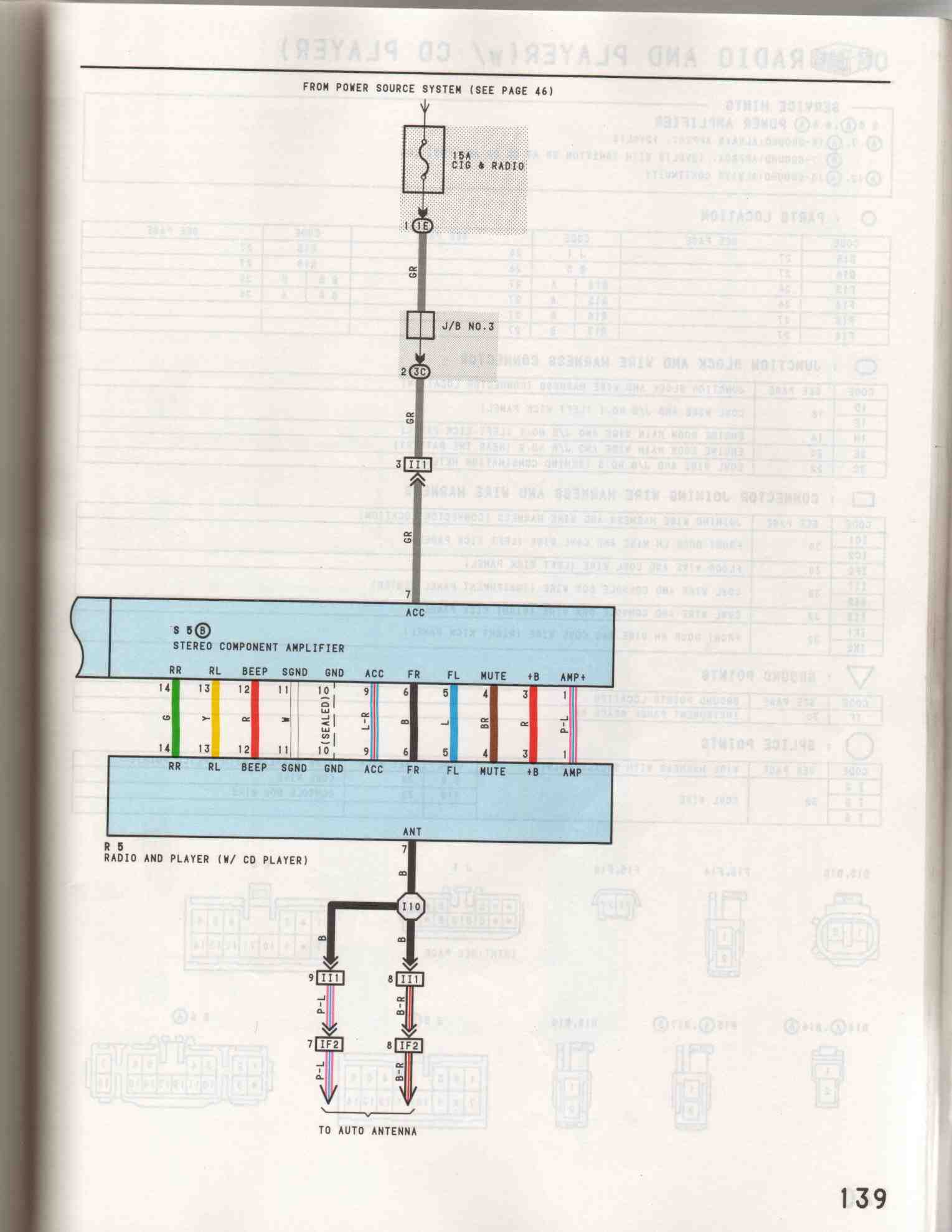

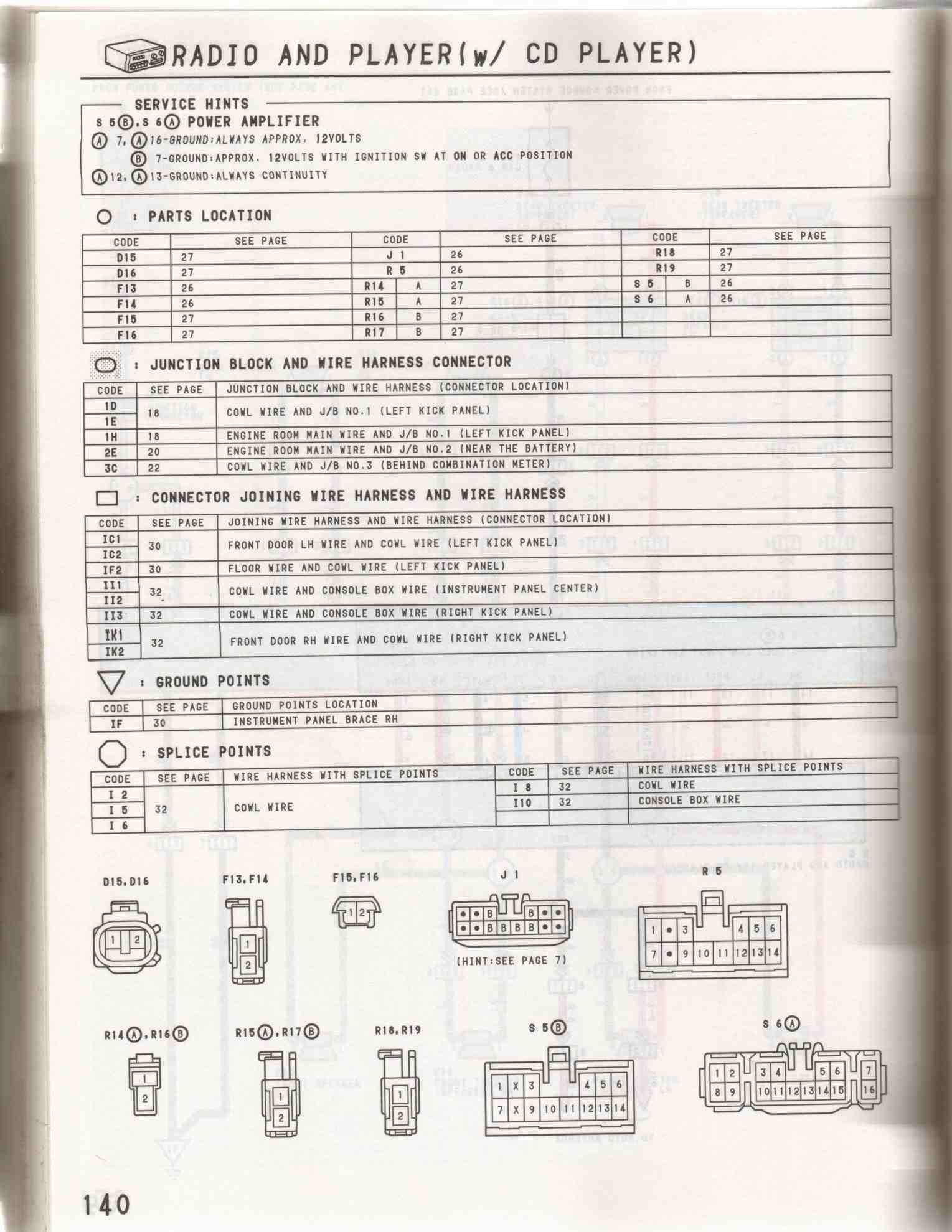

Notice.  The System 10 stereo was original equipment in the 1990 and later Celica GT-S and All-Trac models.  The images below were scanned from the Toyota documentation and are provided because these manuals are no longer available and in the spirit of helping others.

Here they are.    Enjoy!   Click to view full screen.


Return to My Automotive FAQ
